Gas Struts: A Complete Engineering Guide to Selection and Maintenance (2026)
What Are Gas Struts and How Do They Work?
Gas struts consist of a cylinder, piston, and rod charged with nitrogen gas to provide a controlled force assist for opening or lifting lids.
Gas struts function as pneumatic spring systems that store potential energy via compressed nitrogen gas. When compressed, the gas pushes against the piston, forcing the rod outward. This force curve is influenced by the internal nitrogen pressure and the volume of oil that provides damping at the end of the stroke.
Unlike mechanical springs, gas struts allow for a controlled, dampened extension motion. This prevents panels from slamming open or causing damage to surrounding hinges and carcasses. Understanding the force rating—typically measured in Newtons—is critical for achieving the correct assist level.
Why is the Newton force rating critical?
Newton ratings determine the lift assist capability; an undersized strut will fail to hold a load, while an oversized one causes damage.

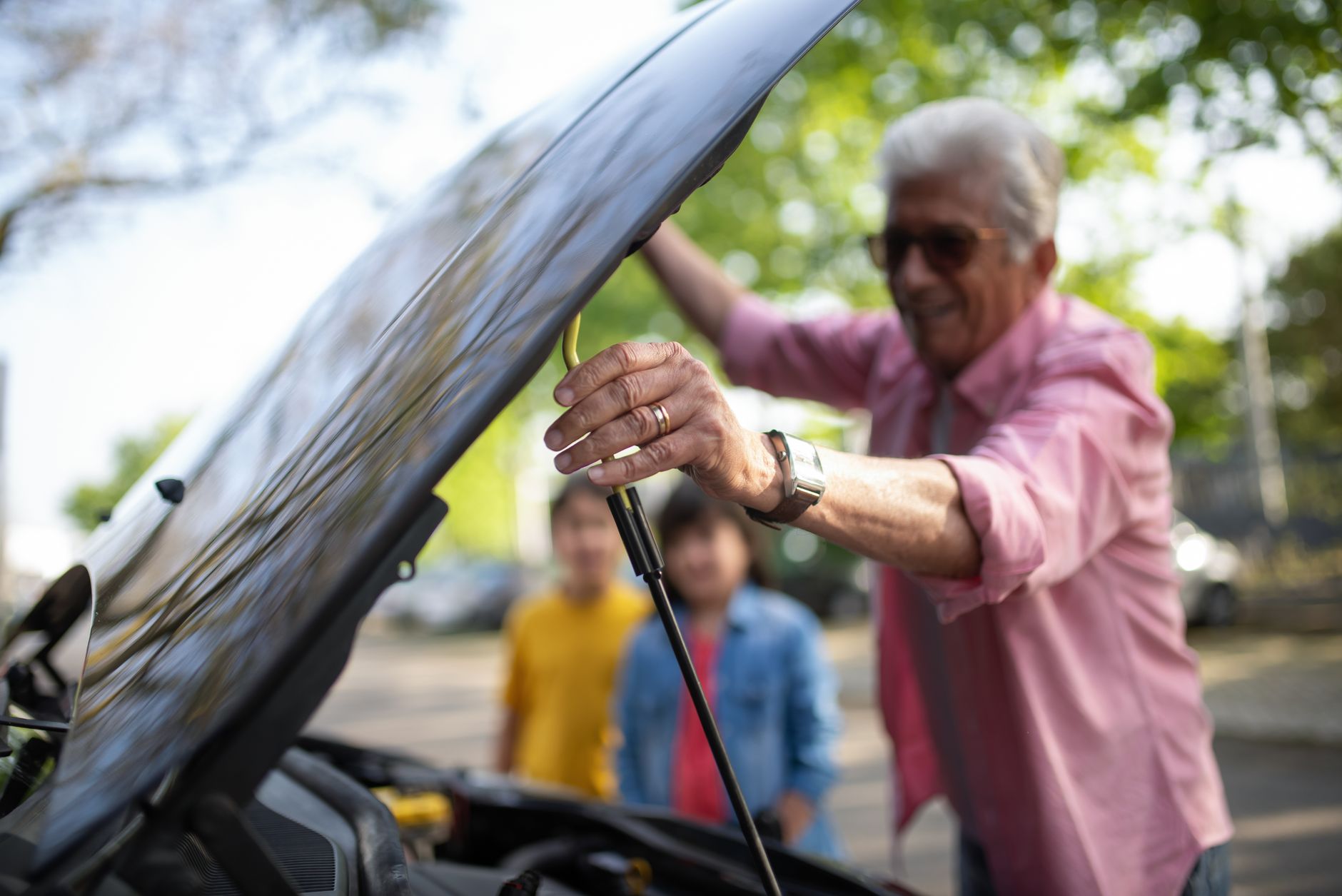

The force rating is measured at mid-stroke and dictates how much weight the strut can support. If you are replacing a strut on a car boot, the specific Newton rating must match the OEM requirement. Using a strut with an incorrect force rating leads to either premature failure of the hinge points or an inability to keep the lid open safely.
- Below 100N: Suitable for small cabinet doors or lightweight storage lids.
- 100N to 400N: Standard range for most automotive bonnets and smaller hatchbacks.
- 400N to 1000N: Heavy-duty applications, industrial machinery guards, and ottoman beds.
- Over 1000N: Custom industrial hatches, machinery access panels, and heavy agricultural equipment.
What is the role of damping in gas struts?
Damping uses internal hydraulic oil to decelerate the piston near the end of extension, preventing structural impact and damage.
Damping prevents the mechanism from hitting the ‘open’ stop with excessive force. As the piston nears the end of its stroke, it forces oil through a restrictive orifice, creating a cushioned effect. This is essential for protecting hinges in kitchen cabinetry and high-cycle industrial machinery.
How Do I Properly Measure a Gas Strut for Replacement?
Measure the eye-to-eye extended length, compressed length, and determine the Newton rating to ensure a compatible replacement part.
How is extended length calculated?
Extended length is measured from the center of the mounting point on one end to the center of the mounting point on the other.
Always measure from the exact center of one ball socket or eyelet to the center of the opposite fitting when the strut is fully extended. If your current unit has failed and will not stay extended, you may need to manually pull it to its maximum length before taking the measurement. Precision here prevents geometry issues in the mounting arc.
How do I identify the correct end fitting?
End fittings include ball sockets, clevis brackets, and eyelets, which must match the vehicle or equipment attachment points exactly.
Common end fittings include 10mm or 8mm ball sockets, which are standard for most automotive applications. Industrial environments often use clevis brackets or threaded ends for a more secure, mechanical connection. If you are unsure of your fitting, our compatibility checker provides guidance based on specific part numbers.
When Should Gas Struts Be Replaced?
Replace gas struts when they exhibit slow lift, bounce, or complete failure to hold position, ideally in pairs to ensure even force.
What are the common symptoms of failure?
Symptoms include the lid dropping unexpectedly, audible hissing noises, or visible oil leakage around the seal at the rod exit point.
If you notice the lid or hatch is “weak” and requires manual assistance to stay open, the nitrogen pressure has likely degraded. In cold weather, you might notice this more acutely, as gas pressure naturally drops in low temperatures. This is a clear indicator that the seal integrity or gas charge is compromised.
| Symptom | Cause |
|---|---|
| Lid drops mid-lift | Loss of nitrogen pressure |
| Visible oil on rod | Failed internal seal |
| Lid slams open | Missing damping or incorrect sizing |
| Corrosion at fittings | Road salt or environmental exposure |
Why should you replace struts in pairs?
Replacing only one strut results in uneven force distribution, causing the mechanism to twist and forcing the new strut to compensate.
Even if one strut appears fully functional, it has likely undergone identical fatigue cycles to the failed one. Replacing in pairs balances the load on the hinge mechanism. This prolongs the life of both the new components and the surrounding structure of the enclosure or vehicle.
Frequently Asked Questions
Common queries regarding gas strut lifespan, reusability, and temperature sensitivity addressed for industrial and home users.
Can gas struts be recharged?
No, gas struts are factory-sealed units and cannot be recharged or repaired; they must be replaced entirely upon pressure loss.
Do I need stainless steel struts for marine use?
Yes, 316-grade stainless steel is required for marine and coastal applications to prevent rapid corrosion from saltwater environments.
How does temperature affect performance?
Gas strut force drops approximately 1.5% for every degree Celsius decrease, which may cause failure in outdoor cold environments.
